RESTful API Client

This Addon provides actions to to send HTTP/S requests using GET, POST, PUT and DELETE methods.
Actions
There are 5 actions in this Addon:
HTTP GET Request
HTTP POST Request
HTTP PUT Request
HTTP DELETE Request
HTTP PATCH Request
Fields
Field/Action
Required
Input/Output
GET
POST
PUT
DELETE
PATCH
uri
X
INPUT
X
X
X
X
X
query
​
INPUT
X
X
X
X
X
headers
​
INPUT
X
X
X
X
X
body
​
INPUT
X
X
X
X
X
format
​
INPUT
X
X
X
X
X
jsonPath
​
INPUT
X
X
X
X
X
expectedStatus
​
INPUT
X
X
X
X
X
schenaPath
​
INPUT
X
X
X
X
X
headerDelimiter
​
INPUT
X
X
X
X
X
filePath
​
INPUT
​
X
X
​
X
response
​
OUTPUT
X
X
X
X
X
status
​
OUTPUT
X
X
X
X
X
responseHeaders
​
OUTPUT
X
X
X
X
X
jsonSchemaValidation
​
OUTPUT
X
X
X
X
X
Input Fields
uri - Request URL (endpoint)
This is a mandatory parameter, otherwise action will fail.
This parameter should contain only the schema, hostname, path and port (e.g. https://domain.tld:8080/api)
 It should not contain query parameters (e.g. ?a=1&b=2).
query - Query parameters.
For example:
If your request query parameters needs to be a=1 and b=2, then write in this field a=1&b=2
The & symbol is used to separate between each parameter.
headers - Request headers. The following default headers are sent:
accept: text/html, image/gif, image/jpeg, *; q=.2, */*; q=.2
connection: keep-alive
content-length:
content-type: application/json
host: The host
user-agent: Jersey/2.22.1 (HttpUrlConnection 1.8.0_181)
Note: the default headers listed above are not overwritten if you don't specify them.
The list of headers are separated by commas (,).
For example:
If your request headers needs to be connection=keep-alive and content-type=application/json, then write in this field:
connection=keep-alive,content-type=application/json
​
Note: You can delimit the headers with a different character by using the HeaderDelimiter field.
body- Body that will be sent in the request
format- Body (if provided) format. For example: application/json or text/html, etc...
For a complete list of options refer to: https://en.wikipedia.org/wiki/Media_type​
expectedStatus - If this parameter is set, the action will check if the actual status code equals expected status code.
If the actual status code is not the expected status code then action fail.
 Accepted values are numbers between 100 and 599 (1xx - 5xx).
HeaderDelimiter - This parameter is used to decide the character to delimit the headers around, by default '=' will be used.
jsonPath - This parameter is used to extract nodes or value from server's JSON response (if such is available).
Supported syntax is the Jayway JsonPath syntax.
 You can find a complete documentation for Jayway JsonPath at GitHub​
For a specific example, see Example 1.2
If the value specified is not found or the the response is a non-JSON response, action will fail.
ignoreUntrustedCertificate - This parameter is used to disable the verification of SSL certificate.
Parameter is false by default. If set to true, RESTful client will accept self signed and untrusted SSL certificate presented by the server when sending a request.
schemaValidationOutputFilePath - This parameter is the file path for the result of the JSON schema validation.
If empty, it will create the output file in the system's Downloads directory.
schemaPath - This parameter is the path for the JSON Schema file.
This parameter is for a full* path of a local schema file, or a URL pointing to a remote schema file. If a URL is provided, it will download the schema locally to a temporary file, before performing the validation. Schema validation is performed on the JSON response object provided in the JsonResponse field.
createFile - This parameter is a boolean flag to indicate that a validation results output is required.
If set totrue, and the schemaValidationOutput parameter is set, a file holding the validation result will be created in the provided location.
filePath - This parameter is the full path of a local file which should be sent to the designated endpoint using POST, PUT, or PATCH. if this parameter is set, the file will be sent as multipart/form-data format, you can still supply a separate body and body format to the request.
Output Fields
response - The full response from the server or the extracted node/value found using expression specified in jsonPath parameter.
If jsonPath is set, response will be limited to the node/value found using the provided expression.
 If the value specified is not found or the the response or the response is not a valid JSON, this field will be empty.
jsonResponse - The full response from the server or the extracted node/value found using expression specified in jsonPath parameter as a JSON object.
This parameter holds the whole response body, or the node/property requested via jsonPath as a JSON object.
status - Server's response status that is a number between 100 and 599 (1xx - 5xx).
schemaValidationOutput - This parameter is the output parameter for the schema validation.
This parameter will contain the output of any violations in the JSON file according to the provided schema.
Using Parameters
By using parameters in your rest API calls, you will be able to pass information between test steps like bearer tokens, API keys and server responses and create data driven tests (utilizing CSV files).
Parameters on rest API tests are avilbale on any input fields.

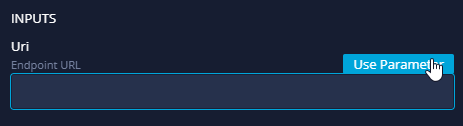

To create/select a parameter, simply select the input field and click on Select parameter:
From the Parameters menu, you can create a new parameter or select existing ones to use in your steps.
Project parameters are shared across all your tests, and test variables are set per test
You will easily be able to chain requests and transfer data from one request to another, like shown in Examples 13-15, by saving the response of the POST request, we receive the URL to use in the next PUT request.
Results
Failure Criteria
All actions have several criterias that may result in failure assertion:
When expectedStatus does not match the actual response status:
Note: If the expectedStatus is not set, and the server responds with status other than 1xx, this will not be considered a failure.
When the requested node/value by jsonPath is not found in the response.
When the server fails to respond.
Connectivity errors
Result Description
All actions will report a message with the following information, no matter if the action pass or fail:
Server response status (taken from the status field)
Response body or “No body/value was returned by the server” when it's absent.
Report of violations discovered using provided JSON schema, or a statement that none were found.
Examples
Following TestProject platform conventions, unset parameters will be treated as nulls / empty strings and won't be used.
If the format field is empty it will take application/json as the default value.
Example 1: POST Request with body
Field
Value
Input/Output
uri
​https://jsonplaceholder.typicode.com/posts/1​
INPUT
body
{"name": "Example User", "email": "[email protected]", "username": "ExampleUser"}
INPUT
response
{"name": "Example User", "email": "[email protected]", "username": "ExampleUser", "id": 11}
OUTPUT
status
201
OUTPUT
Action result: PASSED
Example 1.1: POST Request with expectedStatus
Field
Value
Input/Output
uri
​https://jsonplaceholder.typicode.com/posts/1​
INPUT
body
{"name": "Example User", "email": "[email protected]", "username": "ExampleUser"}
INPUT
response
{"name": "Example User", "email": "[email protected]", "username": "ExampleUser", "id": 11}
OUTPUT
status
201
OUTPUT
expectedStatus
200
​
Action result: FAILED (Due to expectedStatus that does not much status)
Example 1.2: POST Request with jsonPath
Field
Value
Input/Output
uri
​https://jsonplaceholder.typicode.com/posts/1​
INPUT
body
{"name": "Example User", "email": "[email protected]", "username": "ExampleUser"}
INPUT
jsonPath
name
INPUT
response
ExampleUser
OUTPUT
status
201
OUTPUT
Action result: PASSED
Example 2: GET Request
Field
Value
Input/Output
uri
​https://jsonplaceholder.typicode.com/posts/1​
INPUT
query
postId=1&id=1
INPUT
response
{"postId": 1, "id": 1, "name": "SOME_USER_NAME", "email": "SOME_EMAIL", "body": "SOME_BODY"}
OUTPUT
status
200
OUTPUT
Action result: PASSED
Example 3: DELETE Request
Field
Value
Input/Output
uri
​https://jsonplaceholder.typicode.com/posts/1​
INPUT
headers
Authorization=YOUR_API_TOKEN,Host=jsonplaceholder.typicode.com
INPUT
response
​
OUTPUT
status
200
OUTPUT
Action result: PASSED
Example 4: POST Request to Upload a text file to a web server using API Key in headers
Field
Value
Input/Output
uri
https://jsonplaceholder.typicode.com/posts
INPUT
filePath
/files/users.txt
INPUT
headers
Authorization=API_KEY
INPUT
response
{"messsage":"Users updated"}
OUTPUT
status
200
OUTPUT
Example 5: GET Request to get the Upload Link which we will use in the next example to upload an APK
Field
Value
Input/Output
uri
https://api.testproject.io/v2/projects/{projectid}/applications/{appid}/file/upload-link
INPUT
headers
Authorization=API_KEY​
INPUT
jsonPath
$.url
INPUT
response
URL to upload the APK/IPA to TestProject
OUTPUT
status
200
OUTPUT
Example 6: PUT Request to upload an APK to TestProject using TestProject Restful API
Field
Value
Input/Output

uri
URL From the previous Example
INPUT
filePath
Local path to file e.g. C:\files\application.apk
INPUT
status
200
OUTPUT
Files are sent as multipart/form data, additional body and body format can be supplied to the request.
Example 7: POST Request to confirm file upload with BODY
Field
Value
Input/Output
uri
https://api.testproject.io/v2/projects/{projectid}/applications/{appid}/file
INPUT
headers
Authorization=API_KEY​
INPUT
body
{"fileName": "Enter-the-desired-file-name-here.apk/ipa"}
INPUT
status
200
OUTPUT
Example 8: POST Request using GraphQL
Field
Value
Input/Output
uri
​https://graphql.anilist.co​
INPUT
body
{"query": "query ($id: Int) {Media(id: $id, type: ANIME) { id title {romaji english native}}}"}
INPUT
format
application/graphql
INPUT
response
{ "data": { "Media": { "id": 1, "title": { "romaji": "Cowboy Bebop", "english": "Cowboy Bebop", "native": "カウボーイビバップ" } } } }
OUTPUT
response
200
OUTPUT
To use GraphQL, you must supply all Mutations/Queries as a valid JSON format.
Example 9: POST Request with application/x-www-form-urlencoded format
Field
Value
Input/Output
uri
​https://jsonplaceholder.typicode.com/posts/1​
INPUT
body
grant_type=password&password=test&client_id=test&[email protected]
INPUT
format
application/x-xxx-form-urlencoded
INPUT
response
{"token":"1234"}
OUTPUT
status
200
OUTPUT
'application/x-www-form-urlencoded'body requires to be in key=value format where each key-value pair is chained with &
Example 10: POST Request with API Key in Query Params
Field
Value
Input/Output
uri
https://jsonplaceholder.typicode.com/posts
INPUT
query
apikey=1234&username=test&password=project
INPUT
body
{"postsId":"15"}
INPUT
status
201
OUTPUT
Example 11: POST Request with Basic Auth with Bearer Token
Field
Value
Input/Output
uri
https://jsonplaceholder.typicode.com/posts
INPUT
headers
Authorization= Basic {base64encoded)
INPUT
status
200
OUTPUT
To use Basic Auth, the token needs to be encoded to Base64 prior to running the step, you can easily do that using the Base64 encode action which you can see here.
Example 12: POST Request with Basic Auth using username and password with Raw format
Field
Value
Input/Output
uri
https://jsonplaceholder.typicode.com/posts
INPUT
query
username=test&password=project
INPUT
body
This is a test
INPUT
format
application/raw
INPUT
status
201
OUTPUT
By Parameterizing your tests, we can use previous responses as future inputs, like API keys, bearer tokens, and much more.

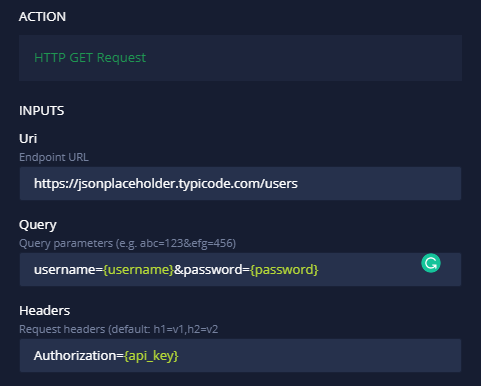

Example 13: GET Request with parameters in Headers and Query field
Field
Value
Input/Output
uri
https://jsonplaceholder.typicode.com/users
INPUT
query
username={username}&password={password}
INPUT
headers
Authorization={api_key}
INPUT
response
{"user":"Test", "ID:1}
OUTPUT
status
200
OUTPUT
Text in curly brackets {} represents Parameters in TestProject recorded tests

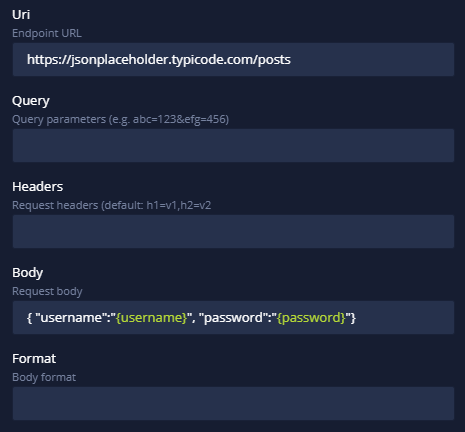

Example 14: POST Request with parameters in the body field
Field
Value
Input/Output
uri
https://jsonplaceholder.typicode.com/posts
INPUT
body
{ "username":"{username}", "password":"{userpassword}"}
INPUT
status
201
OUTPUT
response
{"message": "user created"}
OUTPUT

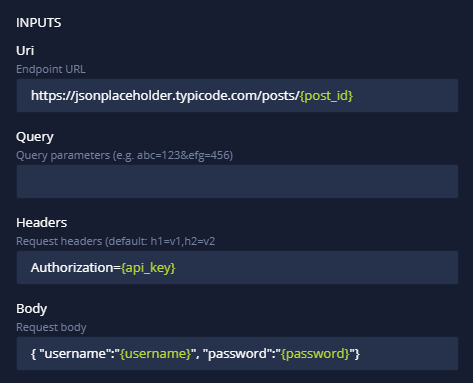

Example 15: POST Request with Parameters in the Body, head and URI
Field
Value
Input/Output
uri
​https://jsonplaceholder.typicode.com/posts/{post_id}​
INPUT
headers
Authorization={api_key}
INPUT
body
{ "username":"{username}", "password":"{password}"}
INPUT
status
201
OUTPUT
Valid Schema Format
Below is an example of a valid schema format:
{
  "$schema": "http://json-schema.org/draft-07/schema#",
  "$id": "https://reqres.in/api/users?page=2/users.schema.json",
  "title": "users",
  "description": "A user from list",
  "type": "object",
  "properties": {
    "name": {
      "description": "The name for a user",
      "type": "string"
    }
  },
  "required": [ "name" ]
}
This is also a good source for a schema: https://json-schema.org/learn/getting-started-step-by-step.html​
Reporting Utilities Addon
Scroll to Element Addon
Last updated 2 months ago
Field/Action	Required	Input/Output	GET	POST	PUT	DELETE	PATCH
uri	X	INPUT	X	X	X	X	X
query		INPUT	X	X	X	X	X
headers		INPUT	X	X	X	X	X
body		INPUT	X	X	X	X	X
format		INPUT	X	X	X	X	X
jsonPath		INPUT	X	X	X	X	X
expectedStatus		INPUT	X	X	X	X	X
schenaPath		INPUT	X	X	X	X	X
headerDelimiter		INPUT	X	X	X	X	X
filePath		INPUT		X	X		X
response		OUTPUT	X	X	X	X	X
status		OUTPUT	X	X	X	X	X
responseHeaders		OUTPUT	X	X	X	X	X
jsonSchemaValidation		OUTPUT	X	X	X	X	X
Field	Value	Input/Output
uri	https://jsonplaceholder.typicode.com/posts/1	INPUT
body	`{"name": "Example User", "email": "[email protected]", "username": "ExampleUser"}`	INPUT
response	`{"name": "Example User", "email": "[email protected]", "username": "ExampleUser", "id": 11}`	OUTPUT
status	201	OUTPUT
